Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color

Brand Name : HCGG

Model Number : PSS001

Certification : CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001

Place of Origin : Henan,China

MOQ : 100 square meters

Price : USD40-80 Square Meter/Negotiable

Payment Terms : L/C,T/T,Western Union,Alibaba.pay

Supply Ability : 50000 Tons/year

Delivery Time : 20-50days

Main Structurel Material : Q355B/ASTM A572 Gr.50/EN S355/JIS SM490

Secondary Structurel Material : Q235B / ASTM A36/ EN S235JR / JIS SS400

Other Material : Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570

Customization : Style,size,Color,Material

After-sale Service : Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support

Project Solution Capability : CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply

Column and Beam : Welded H-section/Hot-rolled H-beam/Box column

Purlin : C.Z Shape Steel Channel

Roof and Wall panel : EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized/

Window : Aluminum alloy / PVC /Industrial louver window

Door : Sliding/Rolling shutter/Hinged steel/Customized steel door

Surface treatment : Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating

Service Life : 20-50 Years

Life Span : More Than 50 Years

Contact Now

Prefabricated Steel Structure Building Overview
Prefabricated steel structure buildings are engineered around core principles of high-efficiency assembly, time-saving construction, and worry-free operation. All main steel frames (H-shaped steel columns, steel beams) and secondary frames (purlins, tie rods) are manufactured using standardized prefabrication in our factory.
Material Specifications & Quality Standards
Primary materials include Q355B (equivalent to S355JR, ASTM A572 Gr.50) and Q235B (equivalent to S235JR, ASTM A36), strictly adhering to ISO quality systems. Through automated cutting, precise welding, and standardized anti-corrosion treatment (sandblasting + double-layer primer + topcoat/hot-dip galvanizing), component accuracy is controlled within ±2mm, eliminating the need for on-site secondary processing.
Construction Advantages
On-site construction requires only rapid splicing with high-strength bolts, eliminating extensive welding and wet work. This enables simultaneous progress of factory production and on-site foundation work, significantly reducing labor input and on-site management costs.
Material Q235B, Q355B galvanized or painted steel
Project Solution Capability Graphic design, 3D model design, total solution for projects
Customized Color/size
After-sale Service Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts
Brand Name HCGG
Place of Origin Henan, China
Main Frame Column and Beam: Welded H-section, Hot-rolled H-beam, Box column (optional)
Secondary Frame C.Z Shape Steel Channel
Window and Door Aluminum alloy/PVC/Industrial louver window Sliding/Rolling shutter/Hinged steel/Sectional overhead/Customized steel/Sandwich panel door
Roof and Wall Panel
  • EPS sandwich panel
  • Rock wool sandwich panel
  • PU / PIR sandwich panel
  • Corrugated steel sheet
  • Trapezoidal steel sheet
  • Insulated sandwich panels for industrial buildings
  • Customized wall and roof panels available as per project requirements
Certificate ISO/CE
Surface Treatment Painted or Galvanized
Customizable Steel Structure Building, Steel Structure Building Warehouse, Custom Metal Buildings Workshop
Core Structural Classification

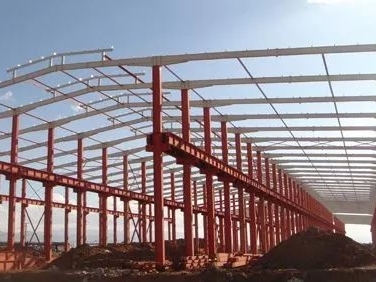

  • Portal Frame: Factory-prefabricated H-beam structure, bolt-connected. Cost-effective for small factories and temporary buildings.

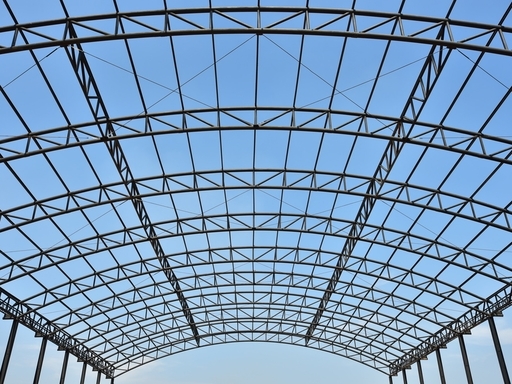

  • Large-Span Truss/Grid: High-strength steel with 30–100m column-free spans. Ideal for heavy-duty factories, stadiums, and exhibition centers.
  • Modular Integrated: Fully finished room modules, bolt-assembled on-site. Fast for apartments, hotels, and resettlement housing.
  • Steel Frame-Braced: Prefab columns/beams with lateral bracing. Superior seismic/wind resistance for mid-rise offices and residences.
  • Custom Special-Shaped: Tailor-made irregular steel components. Creates unique curved/zigzag designs for high-end commercial projects.
Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color
Customization Services
Professional technical experts provide one-on-one consulting services, thoroughly understanding customer needs and tailoring solutions to help customers choose optimal options and optimize production. We specialize in customizing non-standard and project-based steel structures according to drawings and technical requirements.
Regional Adaptation & Compliance
We customize targeted solutions according to global regional characteristics, complying with local standards and climate needs:
  • Regional adaptation: Customize structural design according to local wind/snow load and seismic intensity
  • Standard compliance: Customize according to local design standards and import/export requirements
  • Climate adaptation: Select suitable materials and surface treatment for coastal, cold and other regions
  • Scenario customization: Tailor-made solutions for industrial, logistics, commercial and public building scenarios
  • Full-process service: Provide customized design, production, installation and after-sales one-stop service
Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color Galvanized Painted Prefabricated Steel Structure Warehouse Workshop Customized Color
